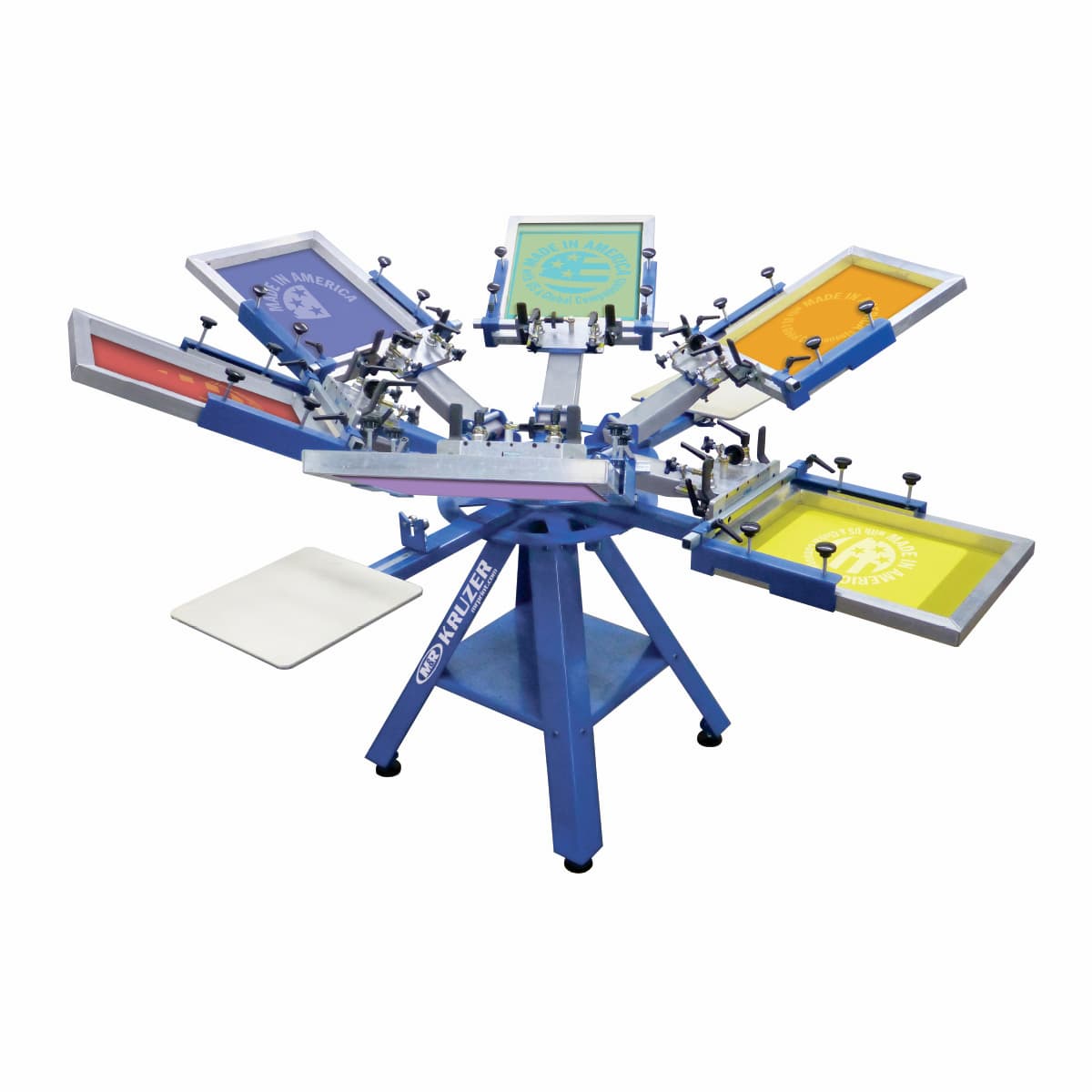

M&R KRUZER Manual Screen Printing Press

• 6-color/4-station entry-level manual screen printing press


• Simplified off-contact adjustment provides excellent control


• Lightweight, rugged, and exceptionally affordable

* Sales Tax not included, will be billed separately.

Kruzer is M&R’s most affordable entry-level manual screen printing press. Built with M&R’s rugged construction and innovative design, Kruzer includes numerous proven design features, including tapered-roller-bearing-supported upper and lower carousels, a precise micro-registration system, machined center shaft, and three-point pallet leveling system. Kruzer’s unique lever-adjusted off-contact system operates vertically, eliminating the need for a separate angle adjustment. Kruzer is offered in a 6-color/4-station model, and it’s designed to fit through a 78 cm (31") doorway when disassembled. Side screen holders and solid aluminum, low-profile, rubber-coated pallets are standard.

M&R’s System Integration design allows Kruzer to integrate seamlessly with the easy-to-use Tri-Loc Rapid Registration System, the industry’s most efficient way to set up and register screens on both manual and automatic screen printing presses. Kruzer’s maximum screen width—58 cm (23”)—also fits most automatic presses. Kruzer delivers unprecedented quality, performance, and value in a manual press. It’s ideal for startup screen printing shops and for small and mid-size automatic screen printing shops in need of an exceptionally affordable high-quality manual screen printing press for sampling and small runs. Kruzer ships disassembled and boxed for onsite assembly, but can be ordered fully assembled and crated (additional charges apply).

Standard Features

DESIGN & CONSTRUCTION

• Designed & disassembled to fit through a 78 cm (31") doorway


• Heavy-duty tapered roller bearings


• Machine-tooled and polished center shaft

PALLET SYSTEM

• Precise three-point pallet leveling system


• Tool-free quick release pallet locks

PALLETS

• Solid-aluminum, low-profile, rubber-coated screen printing pallets


• Standard sizes are interchangeable with M&R automatic screen printing presses

REGISTRATION

• Compatible with M&R’s Tri-Loc® Rapid Registration System

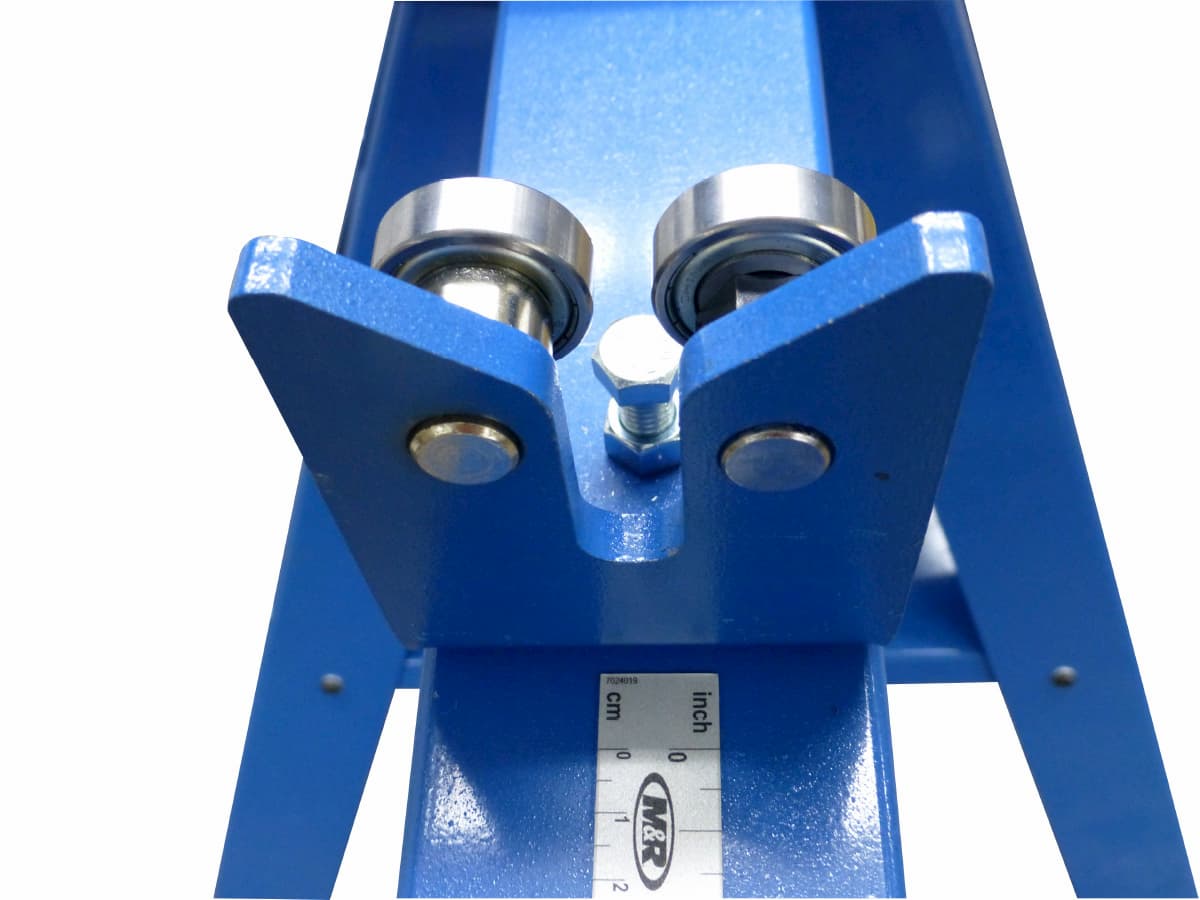

• Hardened steel roller registration bearings provide excellent performance and durability

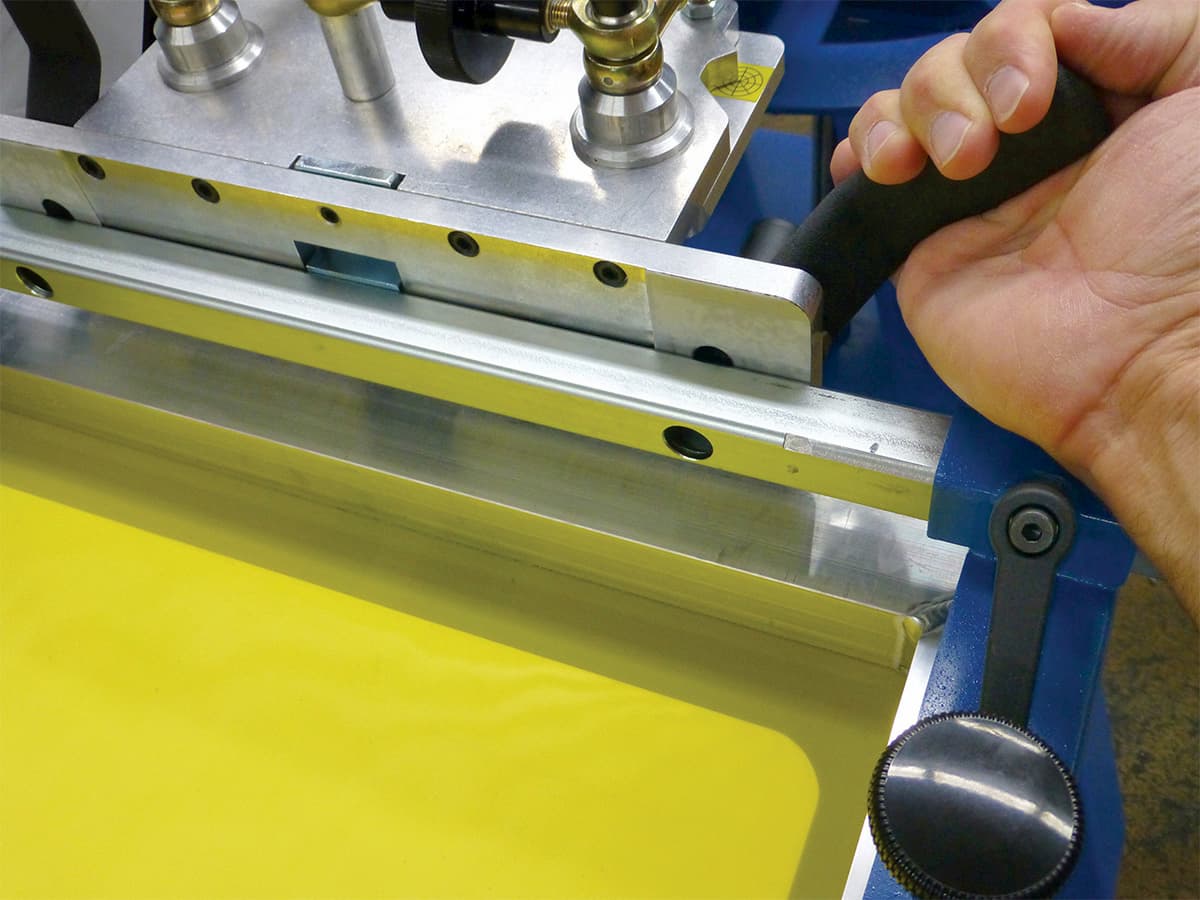

• Lever-adjusted off-contact system operates vertically, eliminating the need for a separate angle adjustment


• Micro-registration with zero set point guides


• V-Guide locator system

SCREEN CLAMPS & HOLDERS

• Accommodate most frame types and manage screen sizes up to 58 cm (23”) wide

SPRING TENSION SYSTEM

• Enclosed spring system accommodates a wide variety of screen types, sizes, and weights
